3D Graphic fail when burn intestwith CPU 100%

[nk4qp1530]

when we run burn in test 9.1(1016)
set CPU:100% 3D:100% 2D:100% 12H，use integrated Graphics
3D occasionally have fail message: An error occured during the DX12 3D test.
But if only 3D:100% 2D:100% 12H (with out CPU test) , it would be pass.
Seems CPU loading will affect the 3D test results?

[Tim (PassMark)]

The DX12 test is very intensive compared to the older style DX9 test and yes a lot of low powered systems with integrated graphics will struggle to run the test without error, particularly when using everything set to 100% duty cycle.

In this case you will need to decrease the duty cycle of the tests or switch to using the DX9 3D test.

[David (PassMark)]

Doesn't generally make sense to run multiple CPU intensive tests at 100% duty cycle at the same time.

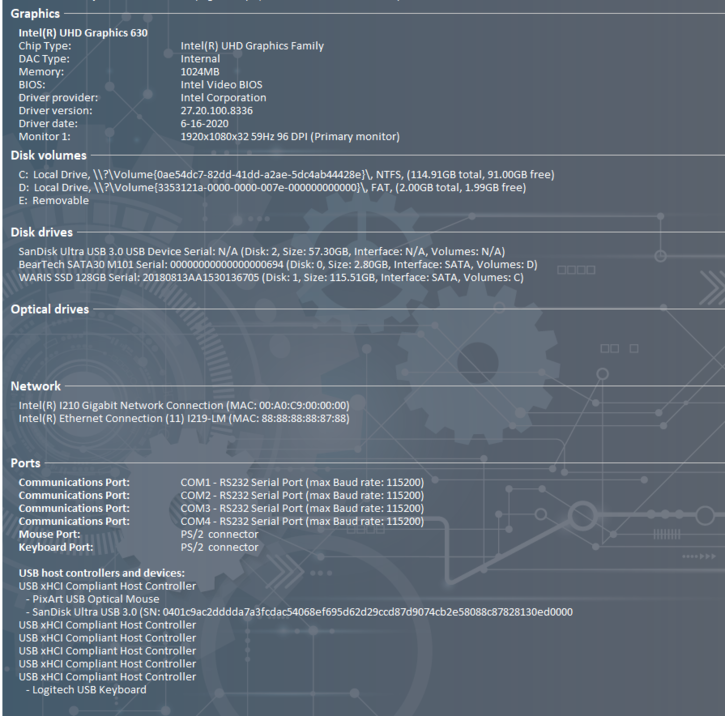

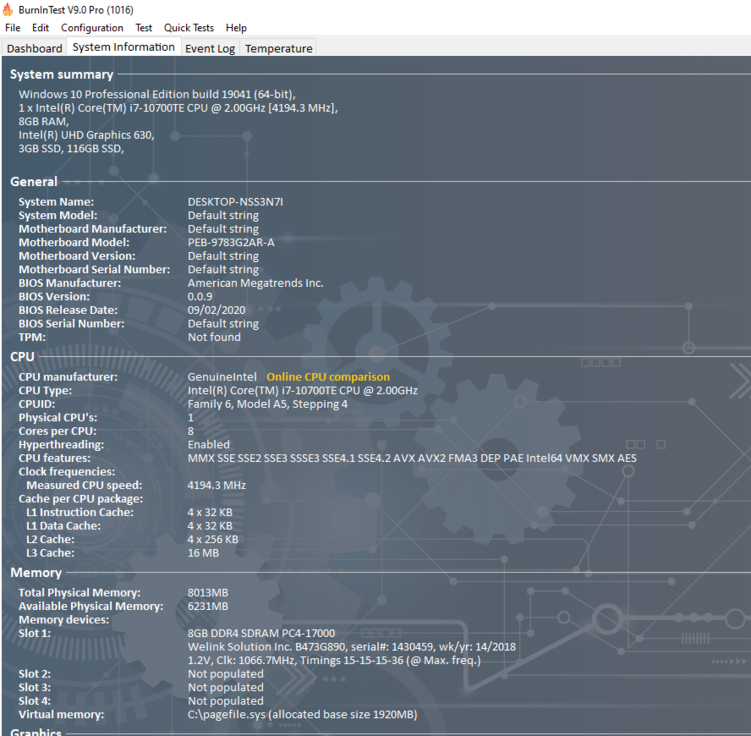

Your screen shots seem to bear no relationship to the problem you are having? What was the 3D error?

[nk4qp1530]

The DX12 test is very intensive compared to the older style DX9 test and yes a lot of low powered systems with integrated graphics will struggle to run the test without error, particularly when using everything set to 100% duty cycle.

In this case you will need to decrease the duty cycle of the tests or switch to using the DX9 3D test.

Hi Tim & David
Got it
after we set CPU & 3D down to 95%, they can pass.

Thanks for support!
