error 255 - WinPE builder

  • Filter
  • Time
  • Show
Clear All
new posts

  • error 255 - WinPE builder

    Windows 10 Enterprise LTSC 1809
    Asus B356M-A Motherboard
    Intel Core i7 9700K CPU @ 3.60GHz
    32GB Vengeance LPX 16GB DDR4 DRAM 3200MHz
    NVIDIA GeForce GTX 760
    1TB Intel 665p NVMe PCIe M.2 2280 SSD
    4TB HGST 3.5" SATA 7200 RPM 6Gb/s HDD
    4TB WD Red Plus 3.5" SATA 5400 RPM 6Gb/s NAS HDD
    Pioneer BDR-209DBK 16x Blu-Ray/CD/DVD Writer
    Fractal Core 1000 mATX Case
    Dell UltraSharp U2713HM 27" IPS Display
    DK9008 Shine II White LED Backlit Keyboard (Brown MX)
    Anker Ergonomic Optical USB Wired Vertical Mouse

    I've followed the steps at with a PNY 32GB USB 3.1 flash drive, and have gotten the following error:

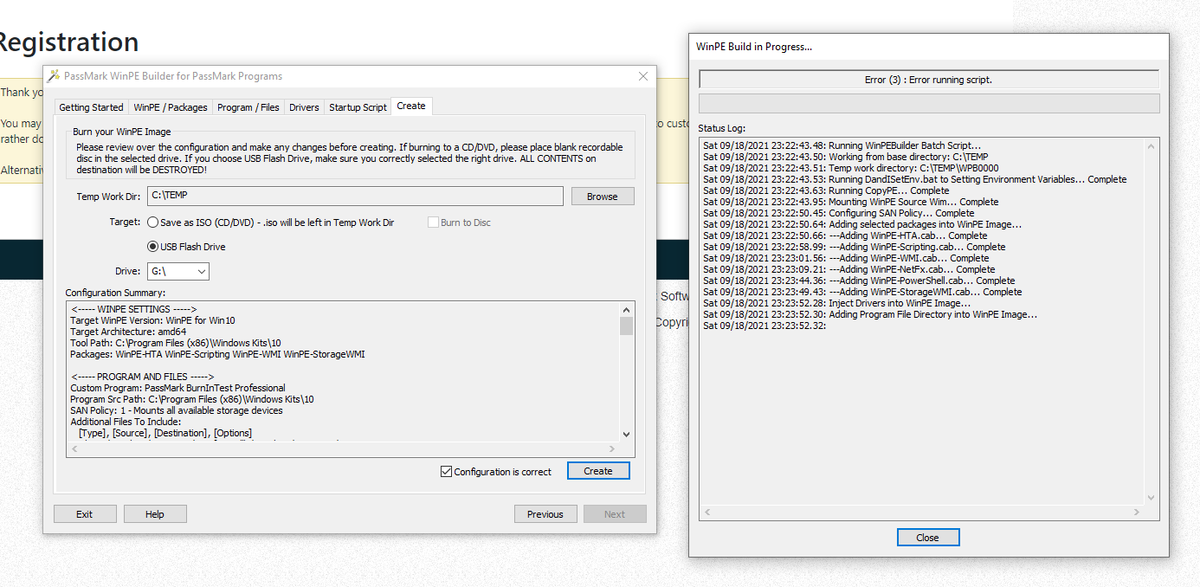

    Error building WinPE Image (255): Unknown failure
    Error (3) Error running script
    Click image for larger version  Name:	255.png Views:	29 Size:	461.2 KB ID:	51382

    Not sure what I did wrong or what to do next...

    Any and all help is greatly appreciated, and able to provide any additional info/logs that may be missing upon request.



  • #2
    You can maybe try moving the temp work dir, program files, drivers so that they are on a different drive. Since it looks like it failed when copying program files.

    If that does not work, try using a different PC.


    • #3
      found my mistake. installed BIT to the flash drive directly rather than to a temp directory first, then letting WinPE do the install, thereby causing WinPE to source the install files from the same place it was trying to write them to. problem solved.
