USB 3.0 loopback test result was both passed and failed

Collapse
X

  • Filter
  • Time
  • Show
Clear All
new posts

  • USB 3.0 loopback test result was both passed and failed

    I don't understand how a test result can be both passed and failed at the same time? Thanks

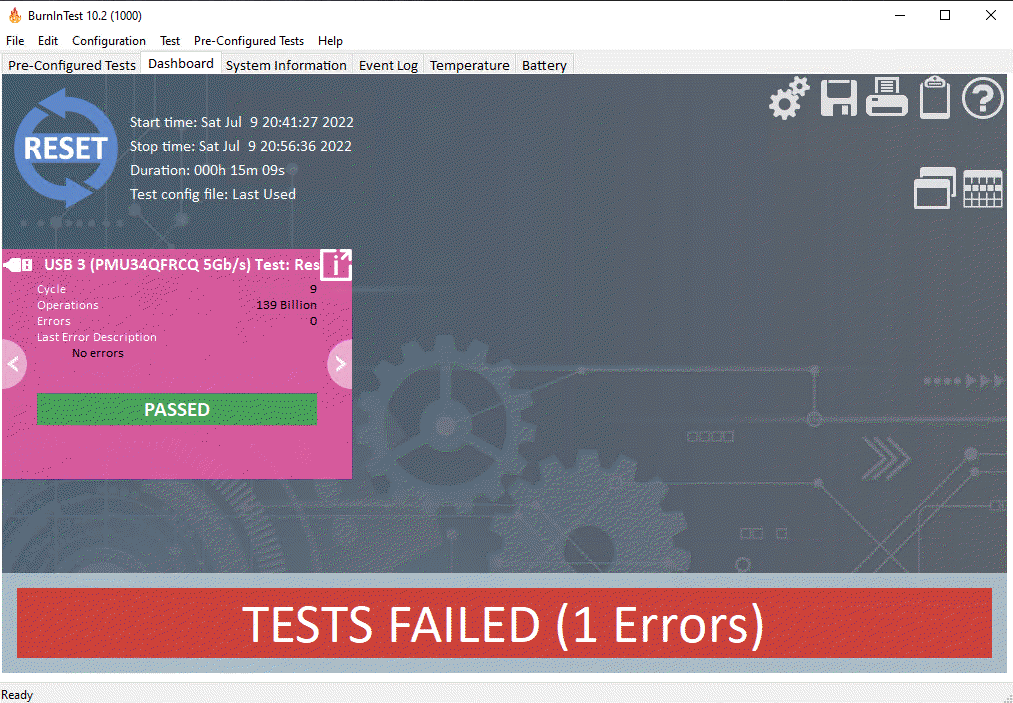

    Click image for larger version

Name:	BurnInTest Window.png
Views:	205
Size:	149.5 KB

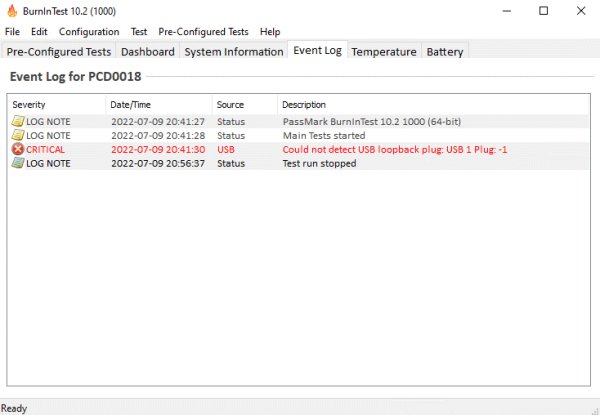

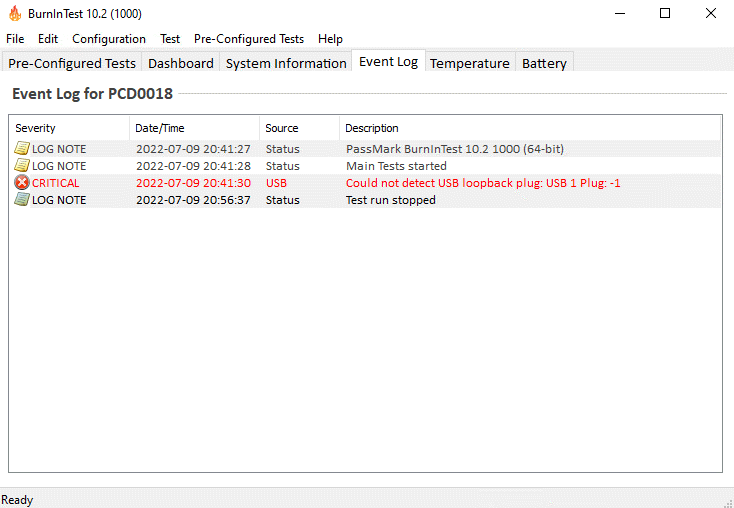

ID:	53143Click image for larger version

Name:	BurnInTest Log.png
Views:	190
Size:	19.6 KB
ID:	53144


  • #2
    It looks like you are testing at least 3 USB ports at the same time.

    USB3 - Passed.
    USB1 - Failed.

    The left / right arrows in the top screen shot allow you to select which USB port is displayed. Or you can maximize the size of the window to view several at once.

    Comment


    • #3
      Thanks, looks like I made multiple mistakes. The test was not configured properly to test the one port with a loopback plug installed, I was thinking I only performed one test, and I forgot about the left and right arrows which should have tipped me off I did not configure the test properly for just one USB port.

      Comment
