Corsais LPX 3200 RAM fails test at 3200, But Passes at 2133?

Collapse
X
Collapse

  • Page of 1
  • Filter
  • Time
  • Show
Clear All
new posts
Previous template Next
  • #1

    Corsais LPX 3200 RAM fails test at 3200, But Passes at 2133?

    Recently started getting some BSODs and suspect something might have shorted in my computer, I accidentally plugged a 5V RGB Controller into a 12V fan header.. Issues started after that.

    The ram has been in the system since April 2017, And haven't had any issues until recently. I'm thinking maybe i shorted something and damaged the RAM? or motherboard?

    Here's the three tests i've done.
    System Information

    3200 with MEMORY TRY IT!! Enabled.
    EFI Specifications 2.60
    System
    Manufacturer Micro-Star International Co., Ltd.
    Product Name MS-7A37
    Version 2.0
    Serial Number To be filled by O.E.M.
    BIOS
    Vendor American Megatrends Inc.
    Version A.E0
    Release Date 07/27/2018
    Baseboard
    Manufacturer Micro-Star International Co., Ltd.
    Product Name B350M MORTAR ARCTIC (MS-7A37)
    Version 2.0
    Serial Number H316298396
    CPU Type AMD Ryzen 5 1600 Six-Core
    CPU Clock 2978 MHz [Turbo: 3722.9 MHz]
    # Logical Processors 12
    L1 Cache 12 x 96K (77074 MB/s)
    L2 Cache 12 x 512K (67317 MB/s)
    L3 Cache 1 x 16384K (30767 MB/s)
    Memory 16347M (17542 MB/s)
    DIMM Slot #0 8GB DDR4 XMP PC4-25600
    Corsair / CMK16GX4M2B3200C16
    16-18-18-36 / 3200 MHz / 1.350V
    DIMM Slot #1 8GB DDR4 XMP PC4-25600
    Corsair / CMK16GX4M2B3200C16
    16-18-18-36 / 3200 MHz / 1.350V
    Result summary
    Test Start Time 2019-08-01 23:39:07
    Elapsed Time 3:26:14
    Memory Range Tested 0x0 - 41F380000 (16883MB)
    CPU Selection Mode Parallel (All CPUs)
    ECC Polling Enabled
    # Tests Passed 41/48 (85%)
    Lowest Error Address 0x29A8180 (41MB)
    Highest Error Address 0x343D32C20 (13373MB)
    Bits in Error Mask 0000000010000018
    Bits in Error 3
    Max Contiguous Errors 1
    Test # Tests Passed Errors
    Test 0 [Address test, walking ones, 1 CPU] 4/4 (100%) 0
    Test 1 [Address test, own address, 1 CPU] 4/4 (100%) 0
    Test 2 [Address test, own address] 4/4 (100%) 0
    Test 3 [Moving inversions, ones & zeroes] 4/4 (100%) 0
    Test 4 [Moving inversions, 8-bit pattern] 4/4 (100%) 0
    Test 5 [Moving inversions, random pattern] 4/4 (100%) 0
    Test 6 [Block move, 64-byte blocks] 3/4 (75%) 4
    Test 7 [Moving inversions, 32-bit pattern] 3/4 (75%) 1
    Test 8 [Random number sequence] 1/4 (25%) 7
    Test 9 [Modulo 20, ones & zeros] 2/4 (50%) 3
    Test 10 [Bit fade test, 2 patterns, 1 CPU] 4/4 (100%) 0
    Test 13 [Hammer test] 4/4 (100%) 0
    Last 10 Errors
    2019-08-02 02:30:09 - [Data Error] Test: 9, CPU: 3, Address: 29A8180, Expected: 99057037, Actual: 9905703F
    2019-08-02 02:29:23 - [Data Error] Test: 8, CPU: 5, Address: 263DC6EC4, Expected: 6F57D099, Actual: 7F57D099
    2019-08-02 02:28:34 - [Data Error] Test: 8, CPU: 11, Address: 990BF840, Expected: BF8498C8, Actual: BF8498C0
    2019-08-02 01:32:46 - [Data Error] Test: 8, CPU: 3, Address: 1392D2980, Expected: DF66B53D, Actual: DF66B535
    2019-08-02 01:32:22 - [Data Error] Test: 8, CPU: 0, Address: 3E45A400, Expected: BD74C2E0, Actual: BD74C2E8
    2019-08-02 01:21:39 - [Data Error] Test: 6, CPU: 1, Address: 343D32C20, Expected: 00000200, Actual: 00000210
    2019-08-02 01:21:38 - [Data Error] Test: 6, CPU: 1, Address: 341D32C40, Expected: 00000200, Actual: 00000210
    2019-08-02 01:21:09 - [Data Error] Test: 6, CPU: 2, Address: 257A28CA0, Expected: 00010000, Actual: 00010010
    2019-08-02 01:21:09 - [Data Error] Test: 6, CPU: 2, Address: 255A28CC0, Expected: 00010000, Actual: 00010010
    2019-08-02 00:41:19 - [Data Error] Test: 9, CPU: 0, Address: 21D46F180, Expected: 3713AD39, Actual: 3713AD31
    Attached Files
    Last edited by Jono; Aug-03-2019, 12:14 AM.
    Tags: None
  • #2

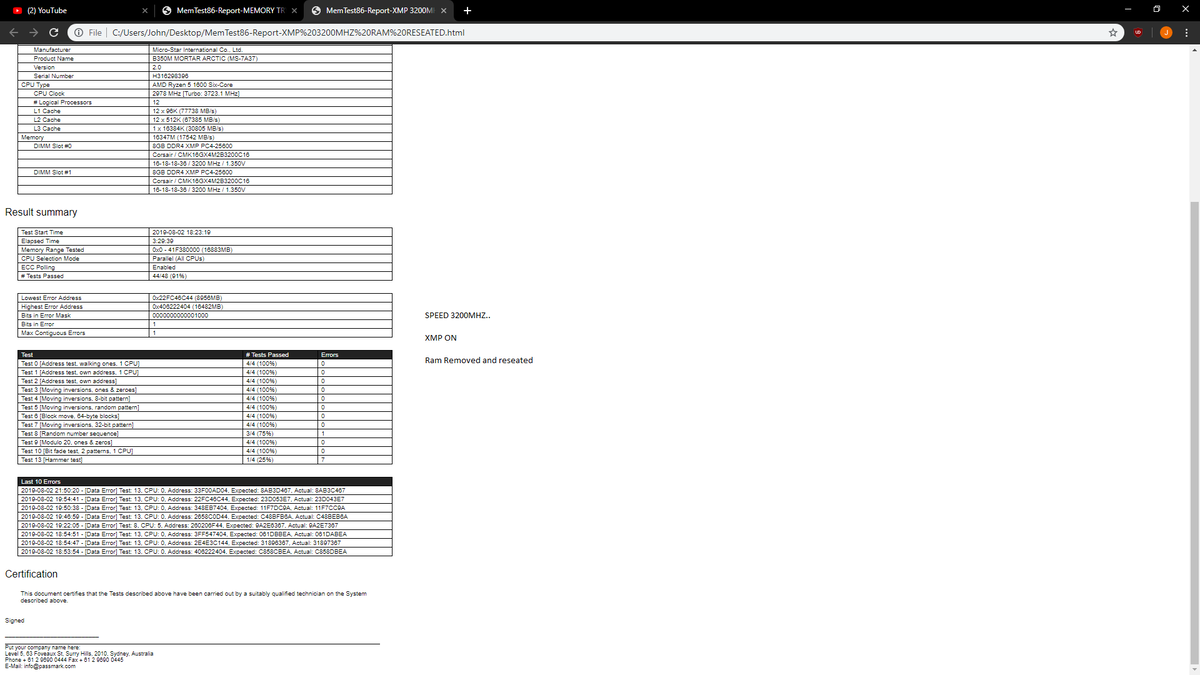

    Test #2. Ram at 3200 With XMP Enabled.
    I've used this setting before, Not sure why it's failing now.
    Summary

    Report Date 2019-08-02 21:53:07
    Generated by MemTest86 V8.2 Free (64-bit)
    Result FAIL
    System Information

    EFI Specifications 2.60
    System
    Manufacturer Micro-Star International Co., Ltd.
    Product Name MS-7A37
    Version 2.0
    Serial Number To be filled by O.E.M.
    BIOS
    Vendor American Megatrends Inc.
    Version A.E0
    Release Date 07/27/2018
    Baseboard
    Manufacturer Micro-Star International Co., Ltd.
    Product Name B350M MORTAR ARCTIC (MS-7A37)
    Version 2.0
    Serial Number H316298396
    CPU Type AMD Ryzen 5 1600 Six-Core
    CPU Clock 2978 MHz [Turbo: 3723.1 MHz]
    # Logical Processors 12
    L1 Cache 12 x 96K (77738 MB/s)
    L2 Cache 12 x 512K (67385 MB/s)
    L3 Cache 1 x 16384K (30805 MB/s)
    Memory 16347M (17542 MB/s)
    DIMM Slot #0 8GB DDR4 XMP PC4-25600
    Corsair / CMK16GX4M2B3200C16
    16-18-18-36 / 3200 MHz / 1.350V
    DIMM Slot #1 8GB DDR4 XMP PC4-25600
    Corsair / CMK16GX4M2B3200C16
    16-18-18-36 / 3200 MHz / 1.350V
    Result summary

    Test Start Time 2019-08-02 18:23:19
    Elapsed Time 3:29:39
    Memory Range Tested 0x0 - 41F380000 (16883MB)
    CPU Selection Mode Parallel (All CPUs)
    ECC Polling Enabled
    # Tests Passed 44/48 (91%)
    Lowest Error Address 0x22FC46C44 (8956MB)
    Highest Error Address 0x406222404 (16482MB)
    Bits in Error Mask 0000000000001000
    Bits in Error 1
    Max Contiguous Errors 1
    Test # Tests Passed Errors
    Test 0 [Address test, walking ones, 1 CPU] 4/4 (100%) 0
    Test 1 [Address test, own address, 1 CPU] 4/4 (100%) 0
    Test 2 [Address test, own address] 4/4 (100%) 0
    Test 3 [Moving inversions, ones & zeroes] 4/4 (100%) 0
    Test 4 [Moving inversions, 8-bit pattern] 4/4 (100%) 0
    Test 5 [Moving inversions, random pattern] 4/4 (100%) 0
    Test 6 [Block move, 64-byte blocks] 4/4 (100%) 0
    Test 7 [Moving inversions, 32-bit pattern] 4/4 (100%) 0
    Test 8 [Random number sequence] 3/4 (75%) 1
    Test 9 [Modulo 20, ones & zeros] 4/4 (100%) 0
    Test 10 [Bit fade test, 2 patterns, 1 CPU] 4/4 (100%) 0
    Test 13 [Hammer test] 1/4 (25%) 7
    Last 10 Errors
    2019-08-02 21:50:20 - [Data Error] Test: 13, CPU: 0, Address: 33F00AD04, Expected: 8AB3D467, Actual: 8AB3C467
    2019-08-02 19:54:41 - [Data Error] Test: 13, CPU: 0, Address: 22FC46C44, Expected: 23D053E7, Actual: 23D043E7
    2019-08-02 19:50:38 - [Data Error] Test: 13, CPU: 0, Address: 348EB7404, Expected: 11F7DC9A, Actual: 11F7CC9A
    2019-08-02 19:46:59 - [Data Error] Test: 13, CPU: 0, Address: 2658C0D44, Expected: C48BFB6A, Actual: C48BEB6A
    2019-08-02 19:22:05 - [Data Error] Test: 8, CPU: 5, Address: 260206F44, Expected: 9A2E6367, Actual: 9A2E7367
    2019-08-02 18:54:51 - [Data Error] Test: 13, CPU: 0, Address: 3FF547404, Expected: 061DBBEA, Actual: 061DABEA
    2019-08-02 18:54:47 - [Data Error] Test: 13, CPU: 0, Address: 2E4E3C144, Expected: 31896367, Actual: 31897367
    2019-08-02 18:53:54 - [Data Error] Test: 13, CPU: 0, Address: 406222404, Expected: C858CBEA, Actual: C858DBEA

    Comment

    • #3

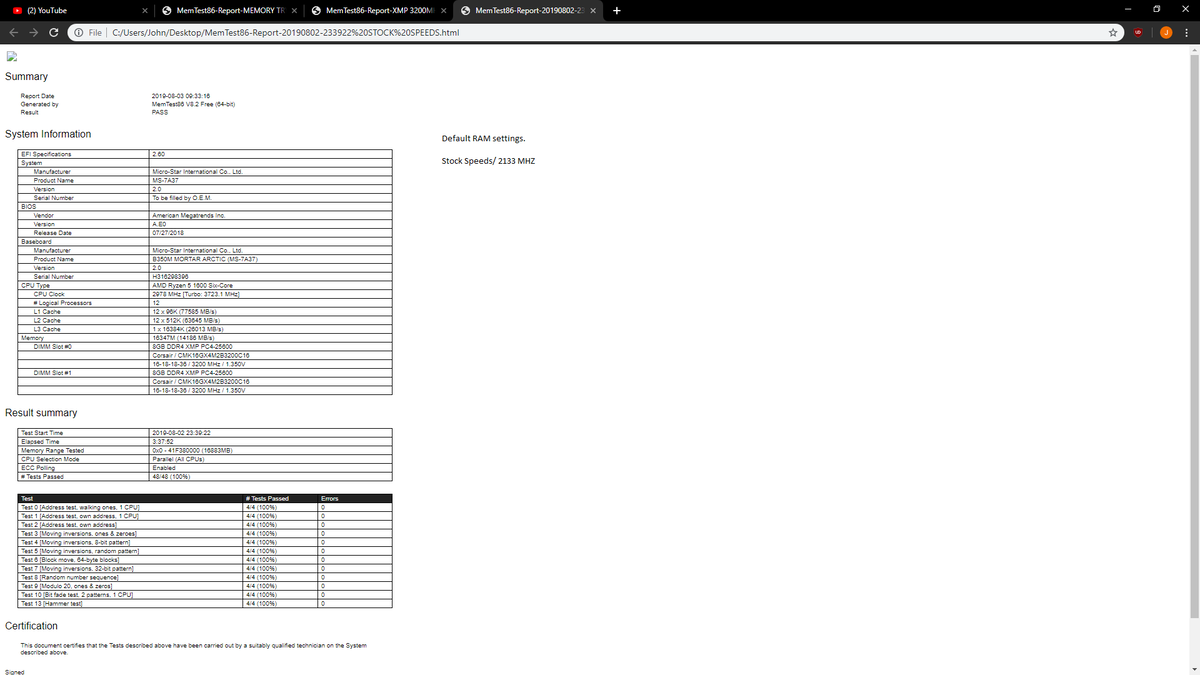

      Test #3 RAM at 2133/Default speeds. Summary

      Report Date 2019-08-03 09:33:16
      Generated by MemTest86 V8.2 Free (64-bit)
      Result PASS
      System Information

      EFI Specifications 2.60
      System
      Manufacturer Micro-Star International Co., Ltd.
      Product Name MS-7A37
      Version 2.0
      Serial Number To be filled by O.E.M.
      BIOS
      Vendor American Megatrends Inc.
      Version A.E0
      Release Date 07/27/2018
      Baseboard
      Manufacturer Micro-Star International Co., Ltd.
      Product Name B350M MORTAR ARCTIC (MS-7A37)
      Version 2.0
      Serial Number H316298396
      CPU Type AMD Ryzen 5 1600 Six-Core
      CPU Clock 2978 MHz [Turbo: 3723.1 MHz]
      # Logical Processors 12
      L1 Cache 12 x 96K (77585 MB/s)
      L2 Cache 12 x 512K (63645 MB/s)
      L3 Cache 1 x 16384K (26013 MB/s)
      Memory 16347M (14186 MB/s)
      DIMM Slot #0 8GB DDR4 XMP PC4-25600
      Corsair / CMK16GX4M2B3200C16
      16-18-18-36 / 3200 MHz / 1.350V
      DIMM Slot #1 8GB DDR4 XMP PC4-25600
      Corsair / CMK16GX4M2B3200C16
      16-18-18-36 / 3200 MHz / 1.350V
      Result summary

      Test Start Time 2019-08-02 23:39:22
      Elapsed Time 3:37:52
      Memory Range Tested 0x0 - 41F380000 (16883MB)
      CPU Selection Mode Parallel (All CPUs)
      ECC Polling Enabled
      # Tests Passed 48/48 (100%)
      Test # Tests Passed Errors
      Test 0 [Address test, walking ones, 1 CPU] 4/4 (100%) 0
      Test 1 [Address test, own address, 1 CPU] 4/4 (100%) 0
      Test 2 [Address test, own address] 4/4 (100%) 0
      Test 3 [Moving inversions, ones & zeroes] 4/4 (100%) 0
      Test 4 [Moving inversions, 8-bit pattern] 4/4 (100%) 0
      Test 5 [Moving inversions, random pattern] 4/4 (100%) 0
      Test 6 [Block move, 64-byte blocks] 4/4 (100%) 0
      Test 7 [Moving inversions, 32-bit pattern] 4/4 (100%) 0
      Test 8 [Random number sequence] 4/4 (100%) 0
      Test 9 [Modulo 20, ones & zeros] 4/4 (100%) 0
      Test 10 [Bit fade test, 2 patterns, 1 CPU] 4/4 (100%) 0
      Test 13 [Hammer test] 4/4 (100%) 0

      Comment

      • #4
        Even if you blew up the RGB controller, and then shorted out the 12V line of the PSU, it is hard to imagine how this would cause just a few RAM errors. Plus if the errors go away if you run the RAM slightly slower it is even less likely that it is a power supply issue.
        So might just be coincidence.

        Just looks like RAM errors. See,
        https://www.memtest86.com/troubleshooting.htm

        Comment

        • #5
          Originally posted by David (PassMark) View Post
          Even if you blew up the RGB controller, and then shorted out the 12V line of the PSU, it is hard to imagine how this would cause just a few RAM errors. Plus if the errors go away if you run the RAM slightly slower it is even less likely that it is a power supply issue.
          So might just be coincidence.

          Just looks like RAM errors. See,
          https://www.memtest86.com/troubleshooting.htm

          I've posted the three tests i have taken.

          The errors don't appear to happen when i run the ram at 2133mhz

          Should i replace the Power Supply? Or or motherboard?

          ​​​​​​Sometimes when i power on the PC/Restart. i freeze at bios/or just doesn't load at all. All motherboard lights are on, fans are spinning but i'm greeted with 2 black screens.

          I thought maybe the motherboard got damaged, But i'm not sure.
          Last edited by Jono; Aug-03-2019, 01:02 AM.
