MemTest86 v5.1.0 problems

[mixb]

mobo ASUS Z97-A BIOS 1008
intel i7-4770
4x4Gb Kingston HyperX KHX1600C9D3P1K2/8G (2x4Gb KIT)
video GV-N770OC-2GD
SSD INTEL SSDSC2CW060A3
HD Hitachi HDE721010SLA330
PIONEER DVD-RW DVR-220

I using USB Drive MemTest86 V5.1.0 Free Edition from Image for creating bootable USB Drive.

When I try to run an older version, I get a black screen with a string:
NTLDR is missing
Press CTRL+ALT+DEL to restart.

How to boot the old version MemTest86?

When I try to run UEFI version, all ok, but:
1. SPD information not available - does not show a list of memory stick
2. run the test - the screen of the program shifted to the right and down, some elements are not drawn

[keith]

When I try to run an older version, I get a black screen with a string:
NTLDR is missing
Press CTRL+ALT+DEL to restart.

How to boot the old version MemTest86?

Were you able to boot the old, non dual-boot v4.3.7 image?

When I try to run UEFI version, all ok, but:
1. SPD information not available - does not show a list of memory stick
2. run the test - the screen of the program shifted to the right and down, some elements are not drawn

Please send or upload the MemTest86.log file under EFI\BOOT\ of your USB drive.

[mixb]

MemTest86.log https://www.dropbox.com/s/xaysijj6pgkqfwd/MemTest86.log

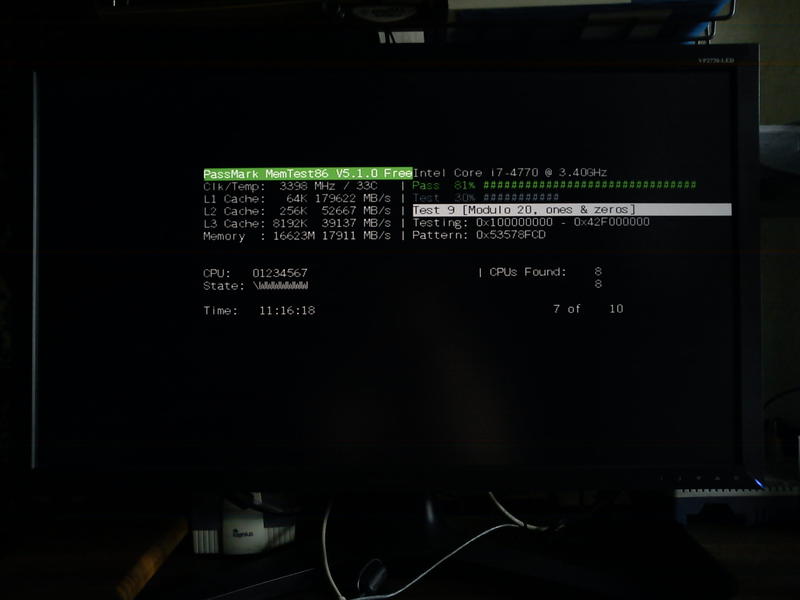

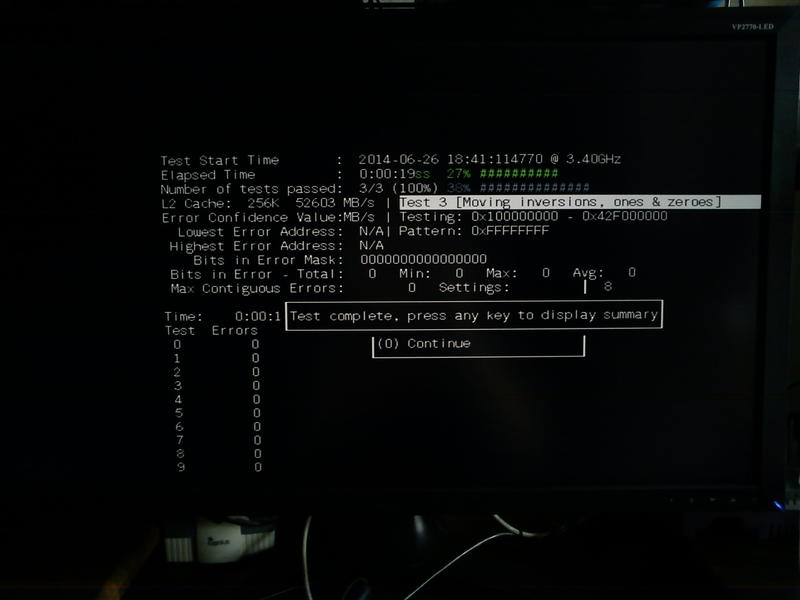

real snapshot - page overlay and offset images, no elements
I updated BIOS - nothing has changed

[David (PassMark)]

I using USB Drive MemTest86 V5.1.0 Free Edition from Image for creating bootable USB Drive.

I note that the screen shot you posted shows you are using a beta release of V5.0, and not V5.1.

The log seems to show V5.1 however. Also the CPU you claimed to be running, i7-4770, doesn't match your initial screen shot, i7-2600.

If you have multiple machines and multiple versions of MemTest86 it would help if you stated what versions had what problems on what hardware.

[mixb]

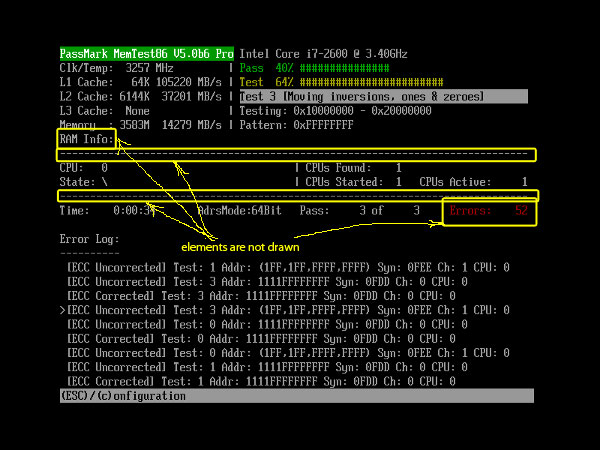

Initial screen shot from your site (http://www.memtest86.com/images/memtest_test.png).
For example, to show what elements are not drawn.

I use:
mobo ASUS Z97-A BIOS 1204
intel i7-4770
4x4Gb Kingston HyperX KHX1600C9D3P1K2/8G (2x4Gb KIT)
video GV-N770OC-2GD
MemTest86 V5.1.0 Free

[keith]

We believe we may have a fix for the issues you are experiencing. We'll have a build up for you to test early next week.

[keith]

Please give this build a try and let us know if you are still experiencing the issues:

http:/www.passmark.com/ftp/memtest86-usb-5.1.1b.1003.zip

[mixb]

Thanks, I will test today

[mixb]

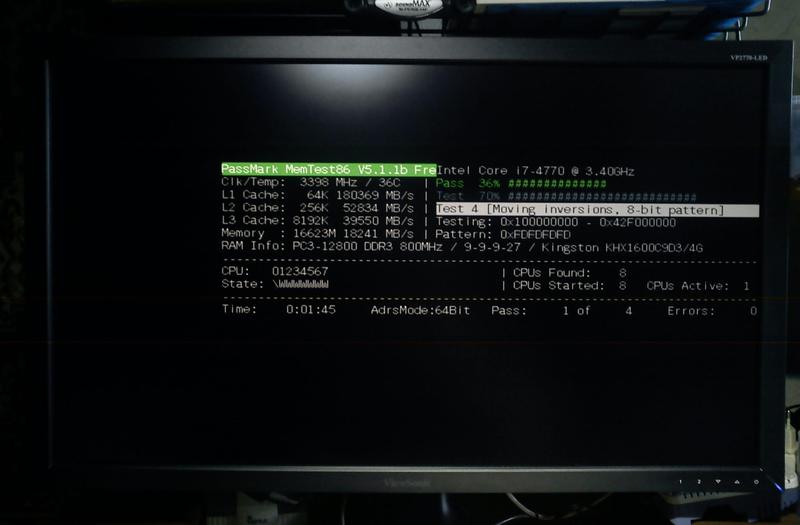

1. SPD information is now available.
2. screen elements that were missing are now available.
3. the screen of the program still shifted to the right and down.


Thanks

[keith]

Thanks. The console display is controlled by the firmware, and not by MemTest86. So the shifted console is either due to a BIOS setting or a bug in the firmware. I would check the BIOS setup for any related settings, and also see if there are any firmware updates available.
