  • DDR5 ECC Memory - memtest shows as disabled / Linux dmidecode shows ECC as enabled

    Hi

    I was trying to use memtest to confirm that EEC is enabled on my new build. As the Topic title explainsm dmidecode shows ECC is enabled in the OS, but memtest shows it as disabled - why would that be, and which should be trusted?

    My spec is

    Intel i5-13500
    Asus W680 Pro IPMI
    Kingston 32GB DDR5 ECC


    Would greatly appreciate any assistance on this

  • #2
    What version of Memtest86 are you using?

    And if you are using V10.3 or later can you provide a log file.
    https://www.memtest86.com/tech_debug-logs.html

    Comment


    • #3
      Originally posted by David (PassMark) View Post
      What version of Memtest86 are you using?

      And if you are using V10.3 or later can you provide a log file.
      https://www.memtest86.com/tech_debug-logs.html
      Thanks

      Thanks for getting back to me, logs attached
      Attached Files

      Comment


      • #4
        Thanks for the logs. This chipset wasn't supported in the latest public release so ECC support cannot be determined (should be displayed as "N/A" in the main menu).

        We attempted to add support for this chipset. Can you give this build a try:
        https://www.passmark.com/temp/memtes...-10.3.1006.zip

        Comment


        • #5
          Originally posted by keith View Post
          Thanks for the logs. This chipset wasn't supported in the latest public release so ECC support cannot be determined (should be displayed as "N/A" in the main menu).

          We attempted to add support for this chipset. Can you give this build a try:
          https://www.passmark.com/temp/memtes...-10.3.1006.zip
          Hi Keith

          Just tried with this version and it now shows ECC to be enabled!

          Thanks so much for your help

          Comment


          • #6
            Originally posted by keith View Post
            Thanks for the logs. This chipset wasn't supported in the latest public release so ECC support cannot be determined (should be displayed as "N/A" in the main menu).

            We attempted to add support for this chipset. Can you give this build a try:
            https://www.passmark.com/temp/memtes...-10.3.1006.zip
            Hi Keith,

            Also running into this issue with version 10.4. Do you know if those changes should be included now in 10.4 or not yet?

            My system is:
            Intel i5-13500
            Asus PRO WS W680-ACE
            Hynix 32GB DDR5 ECC​ HMCG88MEBEA

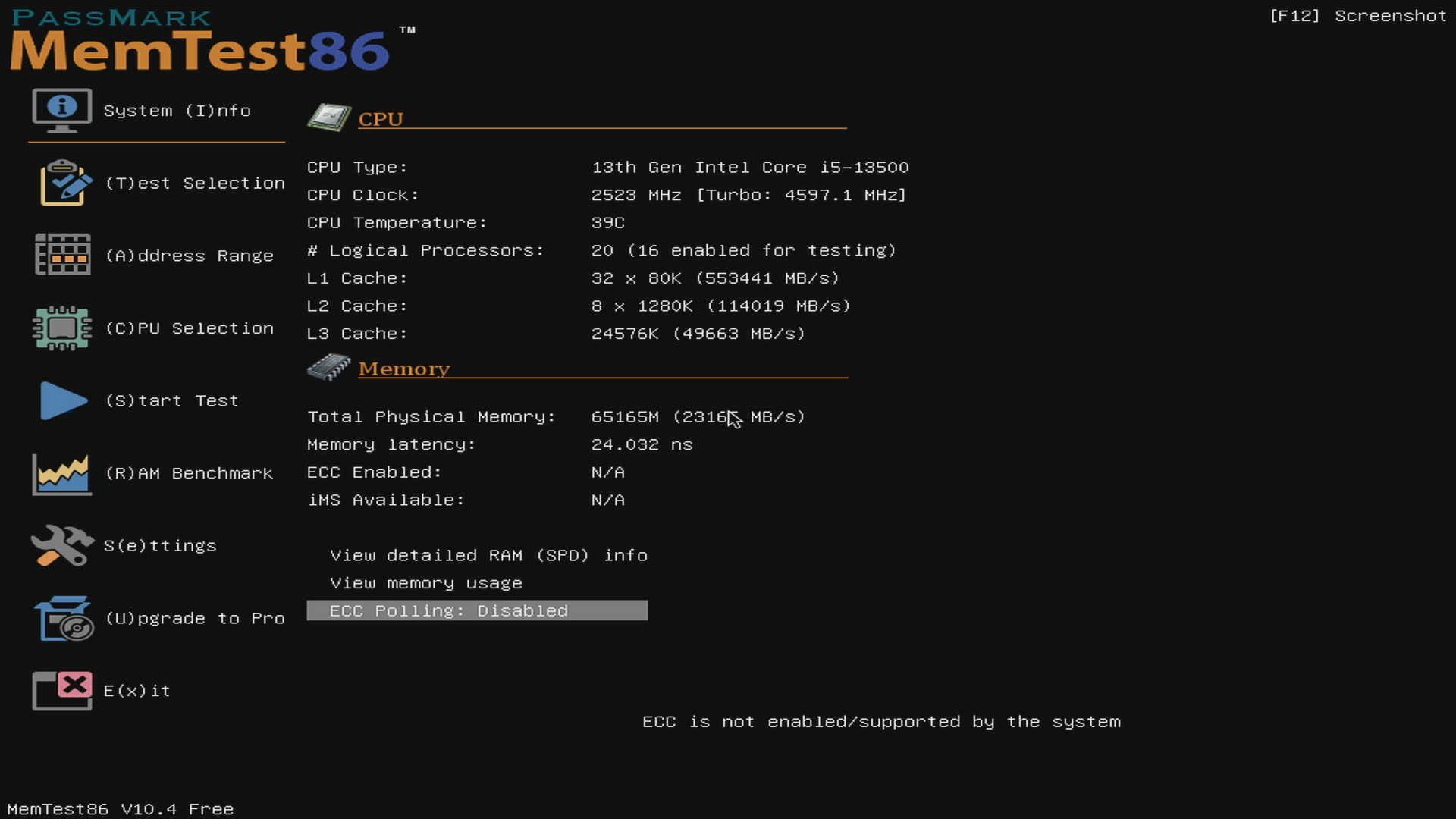

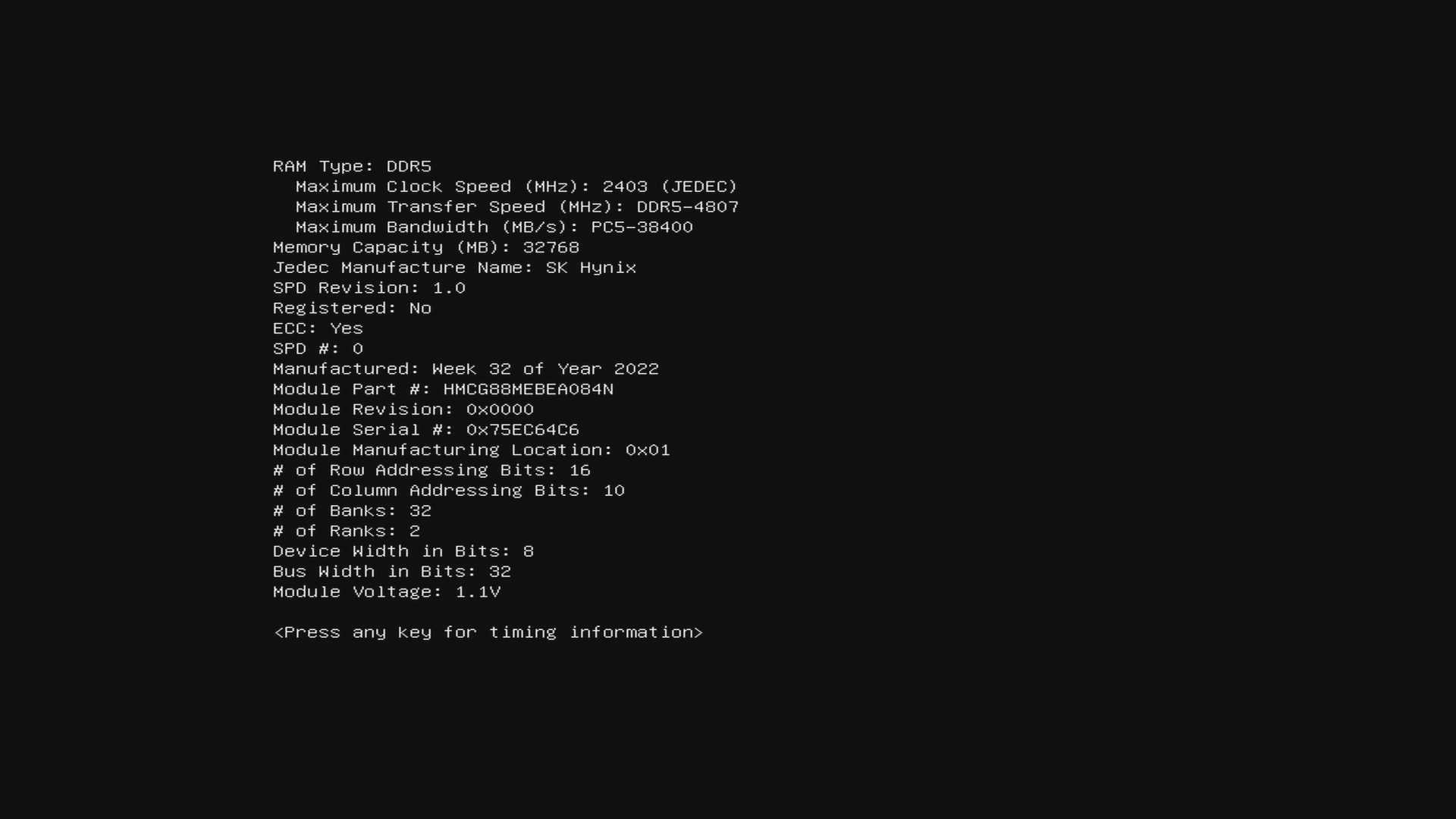

            When viewing the SPD info for each stick I see ECC: Yes, but on the main screen it still says N/A for ECC.

            Click image for larger version

Name:	memtest spd.jpg
Views:	348
Size:	110.8 KB
ID:	55258 Click image for larger version

Name:	memtest 2.jpg
Views:	351
Size:	147.1 KB
ID:	55257
            Attached Files

            Comment


            • #7
              Originally posted by drampelt View Post
              My system is:
              Intel i5-13500
              Asus PRO WS W680-ACE
              Hynix 32GB DDR5 ECC​ HMCG88MEBEA

              When viewing the SPD info for each stick I see ECC: Yes, but on the main screen it still says N/A for ECC.
              We'll need to look at the logs to confirm. Can you send a copy of the MemTest86 log under EFI\BOOT of the USB flash drive.

              Comment


              • #8
                Originally posted by keith View Post

                We'll need to look at the logs to confirm. Can you send a copy of the MemTest86 log under EFI\BOOT of the USB flash drive.
                Yep sorry, here they are.
                MemTest86-20230608-004425.log

                Comment


                • #9
                  Originally posted by drampelt View Post

                  Yep sorry, here they are.
                  [ATTACH]n55261[/ATTACH]
                  Thanks for the logs.

                  Yes, the ECC capabilities for this chipset should properly displayed in our next public release V10.5 (should be in a couple weeks or so)

                  Comment


                  • #10
                    Originally posted by keith View Post
                    Yes, the ECC capabilities for this chipset should properly displayed in our next public release V10.5 (should be in a couple weeks or so)
                    I have the same RAM and motherboard. I'm using v10.6 and still see my ram as being reported as non-ECC, similar to what TheDragon reported.

                    Code:
                    2023-12-08 01:01:59 - [CONFIG] ECCPOLL cannot be enabled as ECC is not available
                    Log files attached. Thank you!
                    Attached Files

                    Comment


                    • #11
                      Originally posted by kmwoley View Post

                      I have the same RAM and motherboard. I'm using v10.6 and still see my ram as being reported as non-ECC, similar to what TheDragon reported.

                      Code:
                      2023-12-08 01:01:59 - [CONFIG] ECCPOLL cannot be enabled as ECC is not available
                      Log files attached. Thank you!
                      Thanks for the logs. This chipset should be supported in our next public release.
