  • Need Help Interpreting results

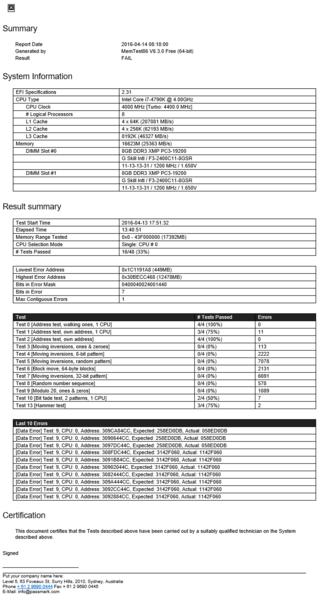

    I have searched here and elsewhere on the web to try and diagnose the issues I'm having with a computer I built about a year ago. It has started giving BSOD's in Windows 8.1 and the windows memory tool showed no errors. So, I downloaded Memtest and ran that, giving a ton of errors. I have two sticks of 8GB each, and I've attached the HTML report here.

    Thanks in advance for any help you can give!
    Click image for larger version

Name:	MemTest86-Report-20160413-175132.jpg
Views:	1
Size:	33.9 KB
ID:	35279

  • #2
    Whoops; I see that the image is compressed there. So I'll paste the results here. Sorry if this is not the way to summarize these.
    Summary

    Report Date 2016-04-14 08:18:00
    Generated by MemTest86 V6.3.0 Free (64-bit)
    Result FAIL
    System Information

    EFI Specifications 2.31
    CPU Type Intel Core i7-4790K @ 4.00GHz
    CPU Clock 4000 MHz [Turbo: 4400.0 MHz]
    # Logical Processors 8
    L1 Cache 4 x 64K (207081 MB/s)
    L2 Cache 4 x 256K (62193 MB/s)
    L3 Cache 8192K (46327 MB/s)
    Memory 16623M (25363 MB/s)
    DIMM Slot #0 8GB DDR3 XMP PC3-19200
    G Skill Intl / F3-2400C11-8GSR
    11-13-13-31 / 1200 MHz / 1.650V
    DIMM Slot #1 8GB DDR3 XMP PC3-19200
    G Skill Intl / F3-2400C11-8GSR
    11-13-13-31 / 1200 MHz / 1.650V

    Result summary

    Test Start Time 2016-04-13 17:51:32
    Elapsed Time 13:40:51
    Memory Range Tested 0x0 - 43F000000 (17392MB)
    CPU Selection Mode Single: CPU # 0
    # Tests Passed 16/48 (33%)
    Lowest Error Address 0x1C1191A8 (449MB)
    Highest Error Address 0x30BECC468 (12478MB)
    Bits in Error Mask 0400040024001440
    Bits in Error 7
    Max Contiguous Errors 1
    Test # Tests Passed Errors
    Test 0 [Address test, walking ones, 1 CPU] 4/4 (100%) 0
    Test 1 [Address test, own address, 1 CPU] 3/4 (75%) 11
    Test 2 [Address test, own address] 4/4 (100%) 0
    Test 3 [Moving inversions, ones & zeroes] 0/4 (0%) 113
    Test 4 [Moving inversions, 8-bit pattern] 0/4 (0%) 2222
    Test 5 [Moving inversions, random pattern] 0/4 (0%) 7078
    Test 6 [Block move, 64-byte blocks] 0/4 (0%) 2131
    Test 7 [Moving inversions, 32-bit pattern] 0/4 (0%) 6691
    Test 8 [Random number sequence] 0/4 (0%) 578
    Test 9 [Modulo 20, ones & zeros] 0/4 (0%) 1089
    Test 10 [Bit fade test, 2 patterns, 1 CPU] 2/4 (50%) 7
    Test 13 [Hammer test] 3/4 (75%) 2
    Last 10 Errors
    [Data Error] Test: 9, CPU: 0, Address: 309CA84CC, Expected: 258ED0DB, Actual: 058ED0DB
    [Data Error] Test: 9, CPU: 0, Address: 3090644CC, Expected: 258ED0DB, Actual: 058ED0DB
    [Data Error] Test: 9, CPU: 0, Address: 3097DC44C, Expected: 258ED0DB, Actual: 058ED0DB
    [Data Error] Test: 9, CPU: 0, Address: 308FDC44C, Expected: 3142F060, Actual: 1142F060
    [Data Error] Test: 9, CPU: 0, Address: 3091B84CC, Expected: 3142F060, Actual: 1142F060
    [Data Error] Test: 9, CPU: 0, Address: 30902044C, Expected: 3142F060, Actual: 1142F060
    [Data Error] Test: 9, CPU: 0, Address: 3082444CC, Expected: 3142F060, Actual: 1142F060
    [Data Error] Test: 9, CPU: 0, Address: 309A444CC, Expected: 3142F060, Actual: 1142F060
    [Data Error] Test: 9, CPU: 0, Address: 3092CC44C, Expected: 3142F060, Actual: 1142F060
    [Data Error] Test: 9, CPU: 0, Address: 3092884CC, Expected: 3142F060, Actual: 1142F060

    Comment


    • #3
      They appear to be legitimate RAM errors. Please see the following page on how to identify and fix the failing module:

      http://www.memtest86.com/troubleshooting.htm
