Errors in test 6 or 9 after cold boot (ie. memory training)
Hi. Just a heads up, but you probably know this already:
because memory training happens on
a) cold boot (ie. poweroff/shutdown, then turn on PC from power button)
or
b) on warm boots(ie. Restart from within Windows) if MRC Fast Boot BIOS settingis Disabled (or, if on Auto but you just Save&Exit-ed from BIOS)
then MemTest86 v8.4(at least), sometimes, correctly(I think), shows errors in test 6 and/or 9 because the motherboard memory trained the DRAM wrongly(it seems to me)
ie.

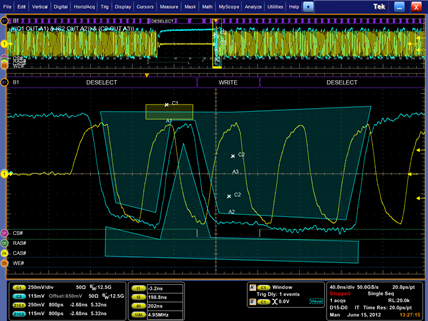

The problem is that apparently memory training seems dependent on DRAM temperature thus it just trains badly when temperature is higher than a certain threshold(ie. if I've just ran 2 passes of just test 6 and 9 before turning off then on again the PC). The other possibility, which is worse, is that it doesn't depend on temperature and it just randomly trains badly.
I'm noticing this mainly due to my overclocking this RAM. (but I haven't tried to repro. this when RAM is not overclocked)
So, without changing any BIOS settings, after stress testing it in Windows via Prime95(multiple tests of 40mins each), TM5 extreme1 profile (6+ hours), RealBench(a few runs), all passing ok, rebooting(warm boot, ie. Windows Restart), booted in Memtest86 (from USB stick) it failed only on test 9 (so all prior tests including 6 passed, on first pass - didn't try more passes). This was the first time I noticed the issue.
Now I can simply press power button to turn off PC while Memtest86 just passed test 6 & 9 two times (two passes of just test 6 and 9 selected) which means the RAM is like 38-40 Celsius (if I just reboot into Windows I see 38 Celsius), and then I press power button to turn on PC after like 2 seconds of being off, and that Memory Training that happens during POST(before anything is shown on screen, and you can see those yellow/red and eventually white then green leds on the motherboard while training happens) can do 2 things:
A) take like 2 minutes and fail by showing me the safe mode screen:
or
B) memory train just fine(even if it takes 20 seconds or 1 minute before showing successful POST screen)
B usually happens only after: A happened once and then I do two more off-then-on the PC, probably until RAM cooled off some more. Unless it's just random, which is worse, imho.
But when B) happens, two things can happen:
a) it will pass memtest86 test 6 and 9 without any errors, and thus will also pass all Memtest86 tests if I run them afterwards!
b) it will error on test 6 (in which case I usually don't let it try test 9 too)
Remember, this happens without even bothering to enter BIOS, so no settings are changed! Some settings are still left on Auto though.
The point is: memory training cannot be trusted
it really seems(to me) to depend on DRAM temperature, if it's say 38+ Celsius it trains badly and memtest86 test 6 and/or 9 will error. If it's below 38 (let's say, guessing though), then it trains good and it won't error in those tests, but as soon as I power off then on again it will train badly and if it does POST it's usually that test 6 errors again.
I'm on Asus Prime Z370-A motherboard (not the II variant), using Intel Core i7-8700K CPU at 4.7Ghz(when turbo), and using 4 sticks of 16GB RAM each made of two RAM kits: one is GTZ and one is GTZKW , here's one kit's name: G.Skill F4-3200C14D-32GTZ Trident Z DDR4-3200MHz CL14-14-14-34 1.35V 32GB (2x16GB)
Here's my BIOS .txt saved settings that I'm using:
because memory training happens on
a) cold boot (ie. poweroff/shutdown, then turn on PC from power button)
or
b) on warm boots(ie. Restart from within Windows) if MRC Fast Boot BIOS settingis Disabled (or, if on Auto but you just Save&Exit-ed from BIOS)
then MemTest86 v8.4(at least), sometimes, correctly(I think), shows errors in test 6 and/or 9 because the motherboard memory trained the DRAM wrongly(it seems to me)
ie.
The problem is that apparently memory training seems dependent on DRAM temperature thus it just trains badly when temperature is higher than a certain threshold(ie. if I've just ran 2 passes of just test 6 and 9 before turning off then on again the PC). The other possibility, which is worse, is that it doesn't depend on temperature and it just randomly trains badly.
I'm noticing this mainly due to my overclocking this RAM. (but I haven't tried to repro. this when RAM is not overclocked)
So, without changing any BIOS settings, after stress testing it in Windows via Prime95(multiple tests of 40mins each), TM5 extreme1 profile (6+ hours), RealBench(a few runs), all passing ok, rebooting(warm boot, ie. Windows Restart), booted in Memtest86 (from USB stick) it failed only on test 9 (so all prior tests including 6 passed, on first pass - didn't try more passes). This was the first time I noticed the issue.
Now I can simply press power button to turn off PC while Memtest86 just passed test 6 & 9 two times (two passes of just test 6 and 9 selected) which means the RAM is like 38-40 Celsius (if I just reboot into Windows I see 38 Celsius), and then I press power button to turn on PC after like 2 seconds of being off, and that Memory Training that happens during POST(before anything is shown on screen, and you can see those yellow/red and eventually white then green leds on the motherboard while training happens) can do 2 things:
A) take like 2 minutes and fail by showing me the safe mode screen:
or
B) memory train just fine(even if it takes 20 seconds or 1 minute before showing successful POST screen)
B usually happens only after: A happened once and then I do two more off-then-on the PC, probably until RAM cooled off some more. Unless it's just random, which is worse, imho.
But when B) happens, two things can happen:
a) it will pass memtest86 test 6 and 9 without any errors, and thus will also pass all Memtest86 tests if I run them afterwards!
b) it will error on test 6 (in which case I usually don't let it try test 9 too)
Remember, this happens without even bothering to enter BIOS, so no settings are changed! Some settings are still left on Auto though.
The point is: memory training cannot be trusted
it really seems(to me) to depend on DRAM temperature, if it's say 38+ Celsius it trains badly and memtest86 test 6 and/or 9 will error. If it's below 38 (let's say, guessing though), then it trains good and it won't error in those tests, but as soon as I power off then on again it will train badly and if it does POST it's usually that test 6 errors again.I'm on Asus Prime Z370-A motherboard (not the II variant), using Intel Core i7-8700K CPU at 4.7Ghz(when turbo), and using 4 sticks of 16GB RAM each made of two RAM kits: one is GTZ and one is GTZKW , here's one kit's name: G.Skill F4-3200C14D-32GTZ Trident Z DDR4-3200MHz CL14-14-14-34 1.35V 32GB (2x16GB)
Here's my BIOS .txt saved settings that I'm using:
Code:
[2020/10/24 17:48:58] Ai Overclock Tuner [Manual] BCLK Frequency [100.0000] ASUS MultiCore Enhancement [Disabled] SVID Behavior [Best-Case Scenario] AVX Instruction Core Ratio Negative Offset [3] CPU Core Ratio [Sync All Cores] 1-Core Ratio Limit [47] 2-Core Ratio Limit [47] 3-Core Ratio Limit [47] 4-Core Ratio Limit [47] 5-Core Ratio Limit [47] 6-Core Ratio Limit [47] BCLK Frequency : DRAM Frequency Ratio [100:133] DRAM Odd Ratio Mode [Enabled] DRAM Frequency [DDR4-3600MHz] TPU [Keep Current Settings] Power-saving & Performance Mode [Performance mode] CPU SVID Support [Enabled] CPU Core/Cache Current Limit Max. [171.00] CPU Graphics Current Limit [45.00] Ring Down Bin [Enabled] Min. CPU Cache Ratio [8] Max CPU Cache Ratio [44] Max. CPU Graphics Ratio [24] Extreme Over-voltage [Disabled] BCLK Aware Adaptive Voltage [Enabled] CPU Core/Cache Voltage [Offset Mode] - Offset Mode Sign [+] - CPU Core Voltage Offset [0.050] DRAM Voltage [1.3794] CPU VCCIO Voltage [1.15000] CPU System Agent Voltage [1.15000] CPU Graphics Voltage [Offset Mode] - Offset Mode Sign [-] - CPU Graphics Voltage Offset [0.120] PCH Core Voltage [Auto] CPU Standby Voltage [Auto] DRAM CTRL REF Voltage on CHA [0.50000] DRAM CTRL REF Voltage on CHB [0.50000] DRAM DATA REF Voltage on CHA DIMM0 Rank0 BL0 [Auto] DRAM DATA REF Voltage on CHA DIMM0 Rank0 BL1 [Auto] DRAM DATA REF Voltage on CHA DIMM0 Rank0 BL2 [Auto] DRAM DATA REF Voltage on CHA DIMM0 Rank0 BL3 [Auto] DRAM DATA REF Voltage on CHA DIMM0 Rank0 BL4 [Auto] DRAM DATA REF Voltage on CHA DIMM0 Rank0 BL5 [Auto] DRAM DATA REF Voltage on CHA DIMM0 Rank0 BL6 [Auto] DRAM DATA REF Voltage on CHA DIMM0 Rank0 BL7 [Auto] DRAM DATA REF Voltage on CHA DIMM0 Rank1 BL0 [Auto] DRAM DATA REF Voltage on CHA DIMM0 Rank1 BL1 [Auto] DRAM DATA REF Voltage on CHA DIMM0 Rank1 BL2 [Auto] DRAM DATA REF Voltage on CHA DIMM0 Rank1 BL3 [Auto] DRAM DATA REF Voltage on CHA DIMM0 Rank1 BL4 [Auto] DRAM DATA REF Voltage on CHA DIMM0 Rank1 BL5 [Auto] DRAM DATA REF Voltage on CHA DIMM0 Rank1 BL6 [Auto] DRAM DATA REF Voltage on CHA DIMM0 Rank1 BL7 [Auto] DRAM DATA REF Voltage on CHA DIMM1 Rank0 BL0 [Auto] DRAM DATA REF Voltage on CHA DIMM1 Rank0 BL1 [Auto] DRAM DATA REF Voltage on CHA DIMM1 Rank0 BL2 [Auto] DRAM DATA REF Voltage on CHA DIMM1 Rank0 BL3 [Auto] DRAM DATA REF Voltage on CHA DIMM1 Rank0 BL4 [Auto] DRAM DATA REF Voltage on CHA DIMM1 Rank0 BL5 [Auto] DRAM DATA REF Voltage on CHA DIMM1 Rank0 BL6 [Auto] DRAM DATA REF Voltage on CHA DIMM1 Rank0 BL7 [Auto] DRAM DATA REF Voltage on CHA DIMM1 Rank1 BL0 [Auto] DRAM DATA REF Voltage on CHA DIMM1 Rank1 BL1 [Auto] DRAM DATA REF Voltage on CHA DIMM1 Rank1 BL2 [Auto] DRAM DATA REF Voltage on CHA DIMM1 Rank1 BL3 [Auto] DRAM DATA REF Voltage on CHA DIMM1 Rank1 BL4 [Auto] DRAM DATA REF Voltage on CHA DIMM1 Rank1 BL5 [Auto] DRAM DATA REF Voltage on CHA DIMM1 Rank1 BL6 [Auto] DRAM DATA REF Voltage on CHA DIMM1 Rank1 BL7 [Auto] DRAM DATA REF Voltage on CHB DIMM0 Rank0 BL0 [Auto] DRAM DATA REF Voltage on CHB DIMM0 Rank0 BL1 [Auto] DRAM DATA REF Voltage on CHB DIMM0 Rank0 BL2 [Auto] DRAM DATA REF Voltage on CHB DIMM0 Rank0 BL3 [Auto] DRAM DATA REF Voltage on CHB DIMM0 Rank0 BL4 [Auto] DRAM DATA REF Voltage on CHB DIMM0 Rank0 BL5 [Auto] DRAM DATA REF Voltage on CHB DIMM0 Rank0 BL6 [Auto] DRAM DATA REF Voltage on CHB DIMM0 Rank0 BL7 [Auto] DRAM DATA REF Voltage on CHB DIMM0 Rank1 BL0 [Auto] DRAM DATA REF Voltage on CHB DIMM0 Rank1 BL1 [Auto] DRAM DATA REF Voltage on CHB DIMM0 Rank1 BL2 [Auto] DRAM DATA REF Voltage on CHB DIMM0 Rank1 BL3 [Auto] DRAM DATA REF Voltage on CHB DIMM0 Rank1 BL4 [Auto] DRAM DATA REF Voltage on CHB DIMM0 Rank1 BL5 [Auto] DRAM DATA REF Voltage on CHB DIMM0 Rank1 BL6 [Auto] DRAM DATA REF Voltage on CHB DIMM0 Rank1 BL7 [Auto] DRAM DATA REF Voltage on CHB DIMM1 Rank0 BL0 [Auto] DRAM DATA REF Voltage on CHB DIMM1 Rank0 BL1 [Auto] DRAM DATA REF Voltage on CHB DIMM1 Rank0 BL2 [Auto] DRAM DATA REF Voltage on CHB DIMM1 Rank0 BL3 [Auto] DRAM DATA REF Voltage on CHB DIMM1 Rank0 BL4 [Auto] DRAM DATA REF Voltage on CHB DIMM1 Rank0 BL5 [Auto] DRAM DATA REF Voltage on CHB DIMM1 Rank0 BL6 [Auto] DRAM DATA REF Voltage on CHB DIMM1 Rank0 BL7 [Auto] DRAM DATA REF Voltage on CHB DIMM1 Rank1 BL0 [Auto] DRAM DATA REF Voltage on CHB DIMM1 Rank1 BL1 [Auto] DRAM DATA REF Voltage on CHB DIMM1 Rank1 BL2 [Auto] DRAM DATA REF Voltage on CHB DIMM1 Rank1 BL3 [Auto] DRAM DATA REF Voltage on CHB DIMM1 Rank1 BL4 [Auto] DRAM DATA REF Voltage on CHB DIMM1 Rank1 BL5 [Auto] DRAM DATA REF Voltage on CHB DIMM1 Rank1 BL6 [Auto] DRAM DATA REF Voltage on CHB DIMM1 Rank1 BL7 [Auto] DRAM CAS# Latency [15] DRAM RAS# to CAS# Delay [16] DRAM RAS# ACT Time [33] DRAM Command Rate [2N] DRAM RAS# to RAS# Delay L [4] DRAM RAS# to RAS# Delay S [4] DRAM REF Cycle Time [288] DRAM Refresh Interval [65024] DRAM WRITE Recovery Time [10] DRAM READ to PRE Time [8] DRAM FOUR ACT WIN Time [16] DRAM WRITE to READ Delay [1] DRAM WRITE to READ Delay L [8] DRAM WRITE to READ Delay S [4] DRAM CKE Minimum Pulse Width [7] DRAM Write Latency [13] tRDRD_sg [6] tRDRD_dg [4] tRDWR_sg [10] tRDWR_dg [10] tWRWR_sg [6] tWRWR_dg [4] tWRRD_sg [27] tWRRD_dg [23] tRDRD_dr [6] tRDRD_dd [7] tRDWR_dr [10] tRDWR_dd [10] tWRWR_dr [7] tWRWR_dd [8] tWRRD_dr [6] tWRRD_dd [6] TWRPRE [27] TRDPRE [8] tREFIX9 [127] OREF_RI [64] MRC Fast Boot [Auto] DRAM CLK Period [20] Memory Scrambler [Enabled] Channel A DIMM Control [Enable both DIMMs] Channel B DIMM Control [Enable both DIMMs] MCH Full Check [Enabled] Training Profile [Standard Profile] DLLBwEn [2] DRAM SPD Write [Disabled] DRAM RTL INIT value [67] DRAM RTL (CHA DIMM0 Rank0) [58] DRAM RTL (CHA DIMM0 Rank1) [58] DRAM RTL (CHA DIMM1 Rank0) [58] DRAM RTL (CHA DIMM1 Rank1) [58] DRAM RTL (CHB DIMM0 Rank0) [58] DRAM RTL (CHB DIMM0 Rank1) [58] DRAM RTL (CHB DIMM1 Rank0) [58] DRAM RTL (CHB DIMM1 Rank1) [58] DRAM IOL (CHA DIMM0 Rank0) [14] DRAM IOL (CHA DIMM0 Rank1) [13] DRAM IOL (CHA DIMM1 Rank0) [13] DRAM IOL (CHA DIMM1 Rank1) [13] DRAM IOL (CHB DIMM0 Rank0) [14] DRAM IOL (CHB DIMM0 Rank1) [14] DRAM IOL (CHB DIMM1 Rank0) [14] DRAM IOL (CHB DIMM1 Rank1) [14] CHA IO_Latency_offset [14] CHB IO_Latency_offset [14] CHA RFR delay [14] CHB RFR delay [14] ODT RTT WR (CHA) [80 DRAM Clock] ODT RTT PARK (CHA) [80 DRAM Clock] ODT RTT NOM (CHA) [40 DRAM Clock] ODT RTT WR (CHB) [80 DRAM Clock] ODT RTT PARK (CHB) [60 DRAM Clock] ODT RTT NOM (CHB) [40 DRAM Clock] ODT_READ_DURATION [2] ODT_READ_DELAY [0] ODT_WRITE_DURATION [1] ODT_WRITE_DELAY [0] Data Rising Slope [Auto] Data Rising Slope Offset [Auto] Cmd Rising Slope [Auto] Cmd Rising Slope Offset [Auto] Ctl Rising Slope [Auto] Ctl Rising Slope Offset [Auto] Clk Rising Slope [Auto] Clk Rising Slope Offset [Auto] Data Falling Slope [Auto] Data Falling Slope Offset [Auto] Cmd Falling Slope [Auto] Cmd Falling Slope Offset [Auto] Ctl Falling Slope [Auto] Ctl Falling Slope Offset [Auto] Clk Falling Slope [Auto] Clk Falling Slope Offset [Auto] CPU Load-line Calibration [Level 2] CPU Current Capability [140%] CPU VRM Switching Frequency [Auto] VRM Spread Spectrum [Disabled] CPU Power Duty Control [T.Probe] CPU Power Phase Control [Extreme] CPU VRM Thermal Control [Enabled] CPU Graphics Load-line Calibration [Level 1] CPU Graphics Current Capability [100%] CPU Graphics VRM Switching Frequency [Auto] CPU Graphics Power Phase Control [Standard] Intel(R) SpeedStep(tm) [Enabled] Turbo Mode [Enabled] Long Duration Package Power Limit [150] Package Power Time Window [2] Short Duration Package Power Limit [154] IA AC Load Line [0.01] IA DC Load Line [0.01] TVB Voltage Optimizations [Disabled] PCI Express Native Power Management [Enabled] Native ASPM [Enabled] PCH DMI ASPM [Enabled] ASPM [Auto] L1 Substates [L1.1 & L1.2] PCI Express Clock Gating [Enabled] DMI Link ASPM Control [L1] PEG - ASPM [Auto] Hyper-Threading [Enabled] Active Processor Cores [All] Intel Virtualization Technology [Enabled] Hardware Prefetcher [Enabled] Adjacent Cache Line Prefetch [Enabled] SW Guard Extensions (SGX) [Disabled] Tcc Offset Time Window [3 sec] Intel(R) SpeedStep(tm) [Enabled] Turbo Mode [Enabled] CPU C-states [Enabled] Enhanced C-states [Enabled] CPU C3 Report [Enabled] CPU C6 Report [Enabled] CPU C7 Report [CPU C7s] CPU C8 Report [Enabled] Package C State Limit [Auto] CFG Lock [Disabled] Intel(R) Speed Shift Technology [Enabled] VT-d [Enabled] Above 4G Decoding [Enabled] Primary Display [CPU Graphics] iGPU Multi-Monitor [Disabled] RC6(Render Standby) [Auto] DVMT Pre-Allocated [64M] DMI Max Link Speed [Auto] PCIEX16_1 Link Speed [Auto] PCIEX16_2 Link Speed [Auto] IOAPIC 24-119 Entries [Enabled] PCIe Speed [Auto] SATA Controller(s) [Enabled] SATA Mode Selection [AHCI] Aggressive LPM Support [Disabled] SMART Self Test [Enabled] SATA6G_1(Charcoal Black) [Disabled] SATA6G_1 Hot Plug [Disabled] SATA6G_2(Charcoal Black) [Enabled] SATA6G_2 Hot Plug [Disabled] SATA6G_3(Charcoal Black) [Disabled] SATA6G_3 Hot Plug [Disabled] SATA6G_4(Charcoal Black) [Disabled] SATA6G_4 Hot Plug [Disabled] SATA6G_5(Charcoal Black) [Disabled] SATA6G_5 Hot Plug [Disabled] SATA6G_6(Charcoal Black) [Disabled] SATA6G_6 Hot Plug [Disabled] TPM Device Selection [Discrete TPM] VccCore Override Enable [Disabled] VccST Override Enable [Disabled] VccSA Override Enable [Disabled] VccSFR_OC Override Enable [Disabled] VccSFR Override Enable [Disabled] VccIO Override Enable [Disabled] Core PLL Voltage Offset [0] GT PLL Voltage Offset [0] Ring PLL Voltage Offset [0] System Agent PLL Voltage Offset [0] Memory Controller PLL Voltage Offset [0] Thunderbolt(TM) Support [Disabled] Thunderbolt(TM) PCIe Support [Disabled] Windows 10 Thunderbolt support [Disabled] Security Device Support [Enable] SHA-1 PCR Bank [Enabled] SHA256 PCR Bank [Enabled] SM3_256 PCR Bank [Disabled] Pending operation [None] Platform Hierarchy [Enabled] Storage Hierarchy [Enabled] Endorsement Hierarchy [Enabled] TPM2.0 UEFI Spec Version [TCG_2] Physical Presence Spec Version [1.3] ErP Ready [Disabled] Restore AC Power Loss [Power Off] Power On By PCI-E [Disabled] Power On By Ring [Disabled] Power On By RTC [Disabled] Hyper M.2X16 [Disabled] HD Audio Controller [Enabled] DVI Port Audio [Disabled] Depop [Enabled] M.2_1 Configuration [PCIE Mode] M.2_2 PCIe Bandwidth Configuration: [X2][X4] [X2 Mode] Asmedia USB 3.1 Controller [Enabled] When system is in working state [Off] When system is in sleep, hibernate or soft off states [On] Intel LAN Controller [Enabled] Intel PXE Option ROM [Disabled] USB Type C Power Switch [Auto] Serial Port 1 [Disabled] Network Stack [Disabled] Legacy USB Support [Enabled] USB Keyboard and Mouse Simulator [Disabled] Generic STORAGE DEVICE 9404 [Auto] Generic Storage Device 0.00 [Auto] USB3G1_1 [Enabled] USB3G1_2 [Enabled] USB3G1_3 [Enabled] USB3G1_4 [Enabled] USB3G1_5 [Enabled] USB3G1_6 [Enabled] USB9 [Enabled] USB10 [Enabled] USB11 [Enabled] USB12 [Enabled] USB13 [Enabled] USB14 [Enabled] CPU Temperature [Monitor] MotherBoard Temperature [Monitor] PCH Temperature [Monitor] T_Sensor Temperature [Monitor] EXT_Sensor1 Temperature [Monitor] EXT_Sensor2 Temperature [Monitor] EXT_Sensor3 Temperature [Monitor] CPU Fan Speed [Monitor] CPU Optional Fan Speed [Monitor] Chassis Fan 1 Speed [Monitor] M.2 Fan Speed [Monitor] Chassis Fan 2 Speed [Monitor] Extension Fan 1 Speed [Monitor] Extension Fan 2 Speed [Monitor] Extension Fan 3 Speed [Monitor] AIO PUMP Speed [Monitor] CPU Core Voltage [Monitor] CPU Graphics Voltage [Monitor] 3.3V Voltage [Monitor] 5V Voltage [Monitor] 12V Voltage [Monitor] PCH Core Voltage [Monitor] CPU System Agent Voltage [Monitor] CPU VCCIO Voltage [Monitor] DRAM Voltage [Monitor] CPU Standby Voltage [Monitor] DMI Voltage [Monitor] Chassis Intrusion Detection Support [Disabled] CPU Q-Fan Control [DC Mode] CPU Fan Speed Lower Limit [200 RPM] CPU Fan Profile [Manual] CPU Upper Temperature [50] CPU Fan Max. Duty Cycle (%) [100] CPU Middle Temperature [45] CPU Fan Middle. Duty Cycle (%) [60] CPU Lower Temperature [36] CPU Fan Min. Duty Cycle (%) [47] AIO PUMP Control [Disabled] Chassis Fan 1 Q-Fan Control [DC Mode] Chassis Fan 1 Q-Fan Source [Multiple Sources] Temperature Source 1 [CPU] Temperature Source 2 [MotherBoard] Temperature Source 3 [PCH] Chassis Fan 1 Speed Low Limit [200 RPM] Chassis Fan 1 Profile [Manual] Chassis Fan 1 Upper Temperature [61] Chassis Fan 1 Max. Duty Cycle (%) [100] Chassis Fan 1 Middle Temperature [61] Chassis Fan 1 Middle. Duty Cycle (%) [80] Chassis Fan 1 Lower Temperature [40] Chassis Fan 1 Min. Duty Cycle (%) [30] Allow Fan Stop [Enabled] M.2 Fan Q-Fan Control [DC Mode] M.2 Fan Q-Fan Source [Multiple Sources] Temperature Source 1 [MotherBoard] Temperature Source 2 [PCH] Temperature Source 3 [CPU] M.2 Fan Speed Low Limit [200 RPM] M.2 Fan Profile [Manual] M.2 Fan Upper Temperature [55] M.2 Fan Max. Duty Cycle (%) [100] Chassis Fan 2 Middle Temperature [50] Chassis Fan 2 Middle. Duty Cycle (%) [80] M.2 Fan Lower Temperature [40] M.2 Fan Min. Duty Cycle (%) [30] Allow Fan Stop [Enabled] Chassis Fan 2 Q-Fan Control [DC Mode] Chassis Fan 2 Q-Fan Source [Multiple Sources] Temperature Source 1 [CPU] Temperature Source 2 [MotherBoard] Temperature Source 3 [PCH] Chassis Fan 2 Speed Low Limit [200 RPM] Chassis Fan 2 Profile [Manual] Chassis Fan 2 Upper Temperature [55] Chassis Fan 2 Max. Duty Cycle (%) [100] Chassis Fan 2 Middle Temperature [50] Chassis Fan 2 Middle. Duty Cycle (%) [80] Chassis Fan 2 Lower Temperature [40] Chassis Fan 2 Min. Duty Cycle (%) [30] Allow Fan Stop [Enabled] Extension Fan 1 Q-Fan Control [Disabled] Extension Fan 2 Q-Fan Control [Disabled] Extension Fan 3 Q-Fan Control [Disabled] Fast Boot [Disabled] Boot Logo Display [Disabled] POST Report [5 sec] Boot up NumLock State [Disabled] Wait For 'F1' If Error [Enabled] Option ROM Messages [Force BIOS] Interrupt 19 Capture [Disabled] Setup Mode [EZ Mode] Launch CSM [Enabled] Boot Device Control [UEFI and Legacy OPROM] Boot from Network Devices [Ignore] Boot from Storage Devices [UEFI driver first] Boot from PCI-E Expansion Devices [Legacy only] OS Type [Other OS] Setup Animator [Disabled] Load from Profile [1] Profile Name [23oct3600] Save to Profile [1]
