  • One bit error in DDR5?

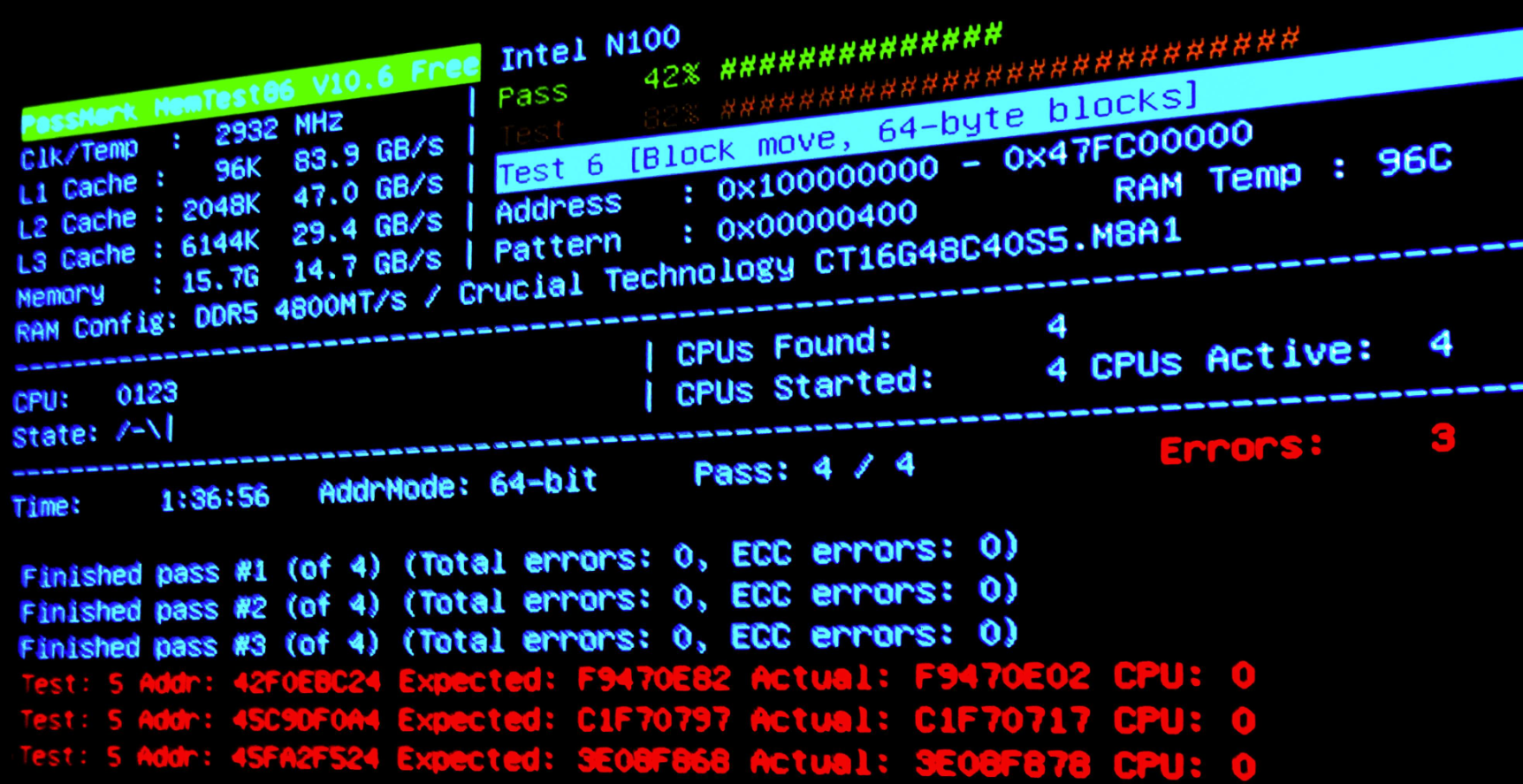

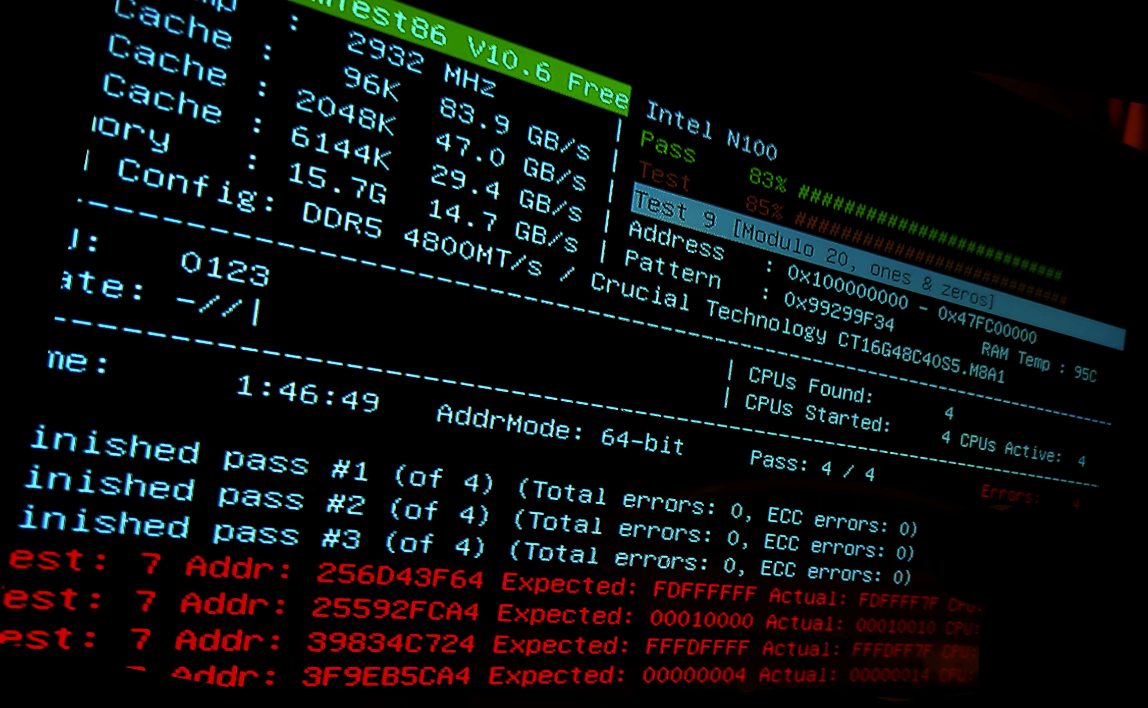

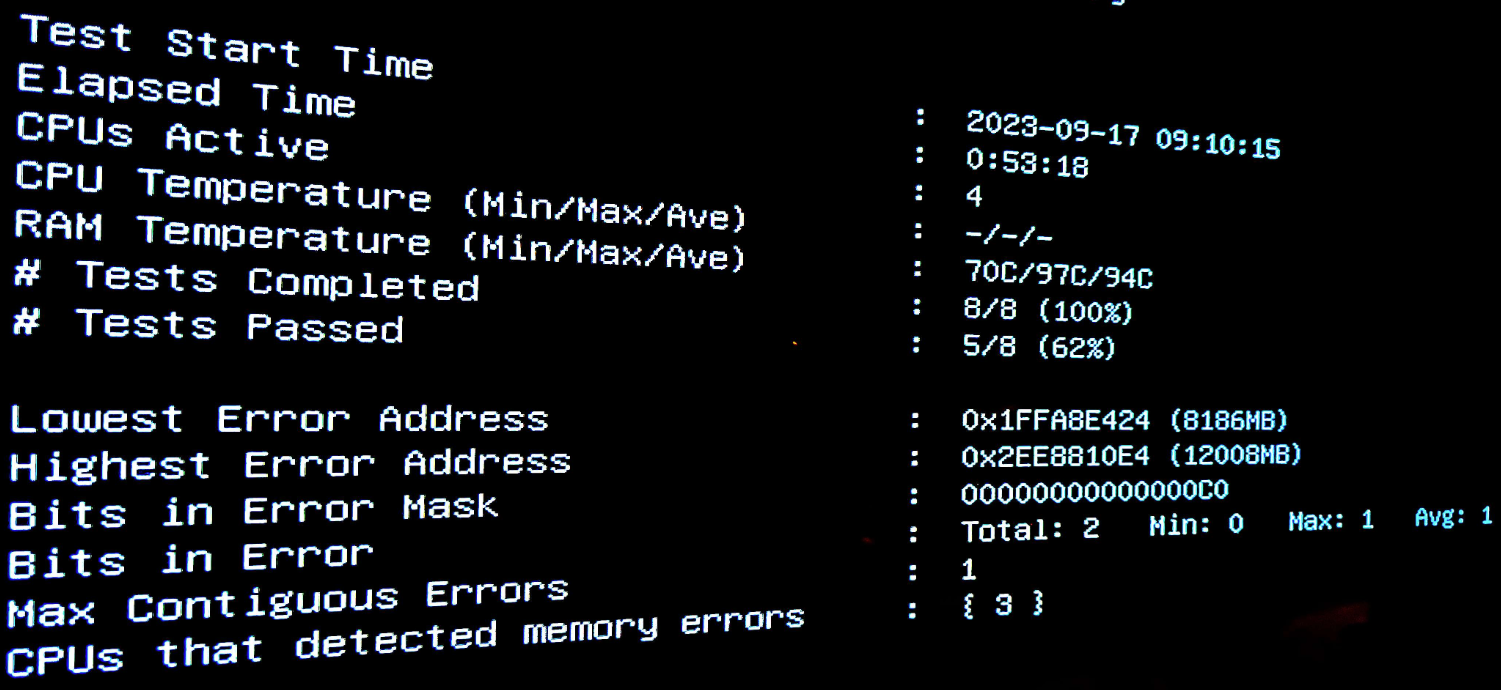

    I am running MemTest86 on this NUC and it keeps having one or a couple one bit errors in either test 5 or 7.
    I guess those tests increase temperature the most.
    I know this NUC is running too hot but shouldn't 1bit errors be fixed by the DDR5 internal ECC?
    Anyhow it seems running it at 95ºC even tho its within spec is too hot since it ran 3 times no erros when I pointed a fan.


    Click image for larger version

Name:	image.png
Views:	259
Size:	654.9 KB
ID:	55949 Click image for larger version

Name:	image.png
Views:	219
Size:	1.29 MB
ID:	55950 Click image for larger version

Name:	image.png
Views:	229
Size:	561.2 KB
ID:	55951 ​​​​

  • #2

    Yes, RAM seems to be running very hot.
    You might be seeing thermal bit flips.

    Internal "on-die" ECC for DDR5 doesn't correct any errors on the bus.
    Also doesn't give any protection (or even notification) of a 2 bit error.

    So it isn't as good as real end to end ECC.
